BOOST YOUR
DOOH WITH
STARVISION
DIGITAL TOTEM
Outdoor DOOH

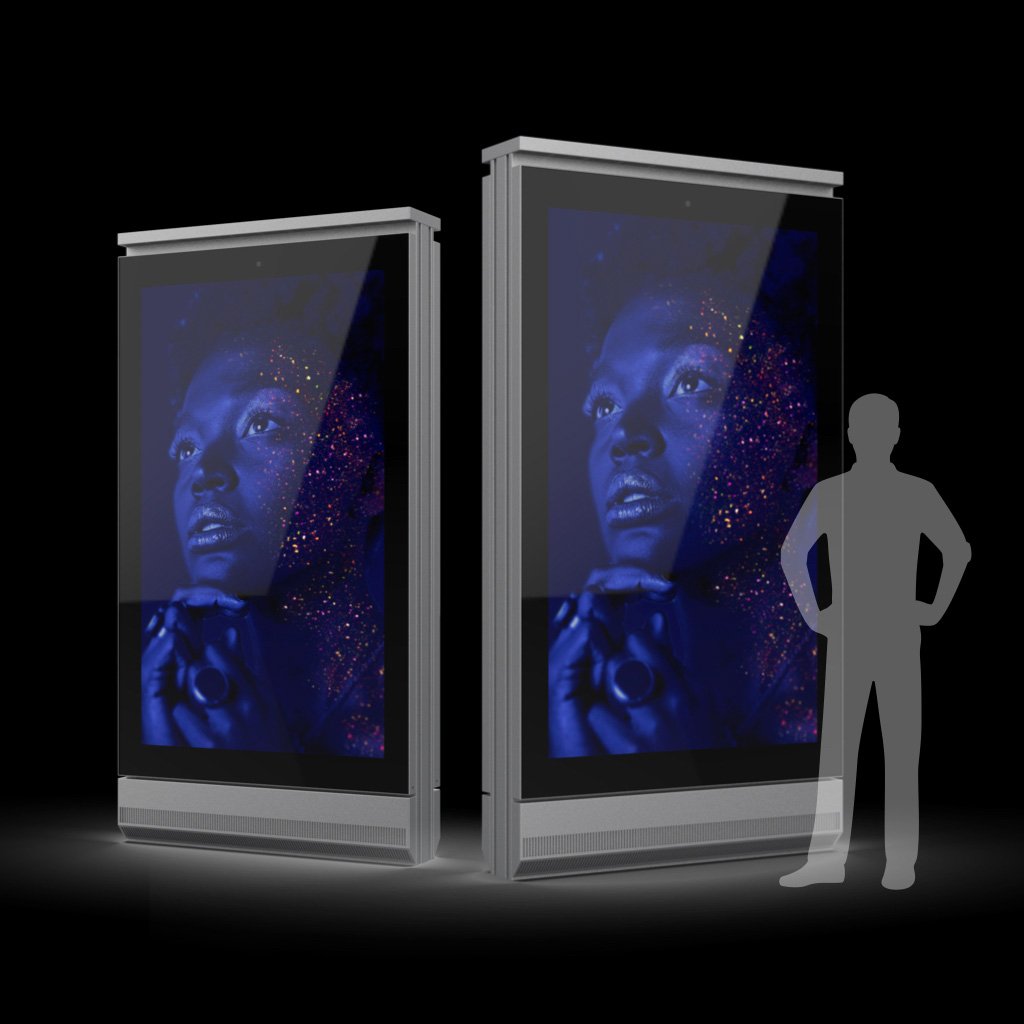

DIGITAL LED TOTEM
Eye level outdoor LED totem with IP 55 aluminum profile enclosure, laminated anti reflective glass protected the screen. digital totem integrated with smart weather management and auto brightness sensor.
Modern Design
Our design fully considers the unique climatic conditions of coastal city, ensuring the totem operates stably under natural conditions such as high temperature, rainfall, and humidity.
Robust Aluminum profile with outdoor powder coating
The casing material is selected for its corrosion resistance and rust-proof properties, coupled with a waterproof design, to guarantee the long-term stability of the device.
Galvanize steel structure reinforcement
The inner structure is made by galvanize steel, the galvanizing is after welded and polishing to insure the structure anti corrosion.
SUNLIGHT READABLE
Anti-Reflection | UV Resistance | Anti- Vandalism

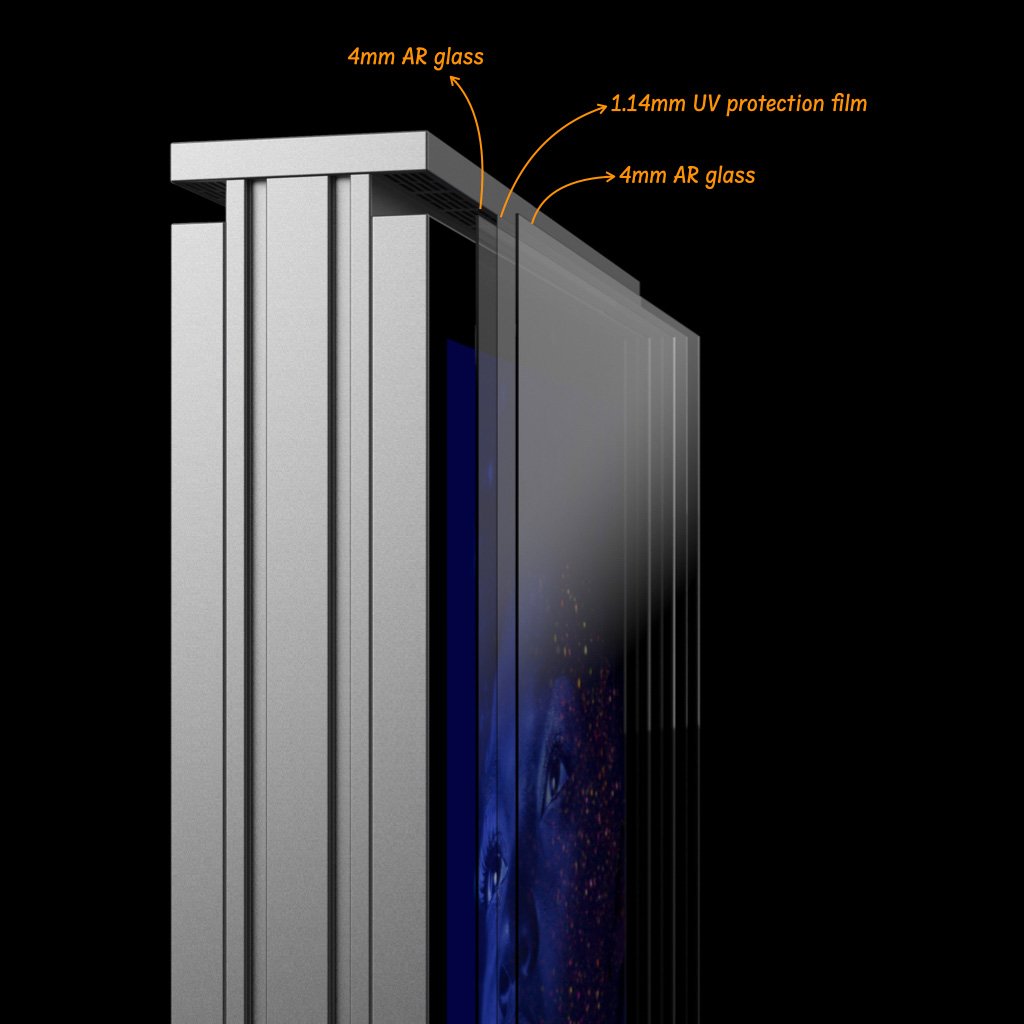

The glass consists of two 4mm tempered layers laminated together, up to level IK 10, each side treated with anti-reflective processing for clear visibility even in strong sunlight. The black edges are silk-screen printed at high temperatures. Logo printing available on free of charge.
* Noted: Anti-reflective glass can effectively reduce the reflectivity of the glass, ensuring that advertising content remains clearly visible under sunlight. However, it cannot completely eliminate reflections.
HEAT & HUMIDITY
MANAGEMENT
A group of high-efficiency and reliable quality fans, controlled by a temperature and humidity management system, fans will automatically activate to maintain normal temperature and humidity levels inside the totem, effectively protecting the screen.

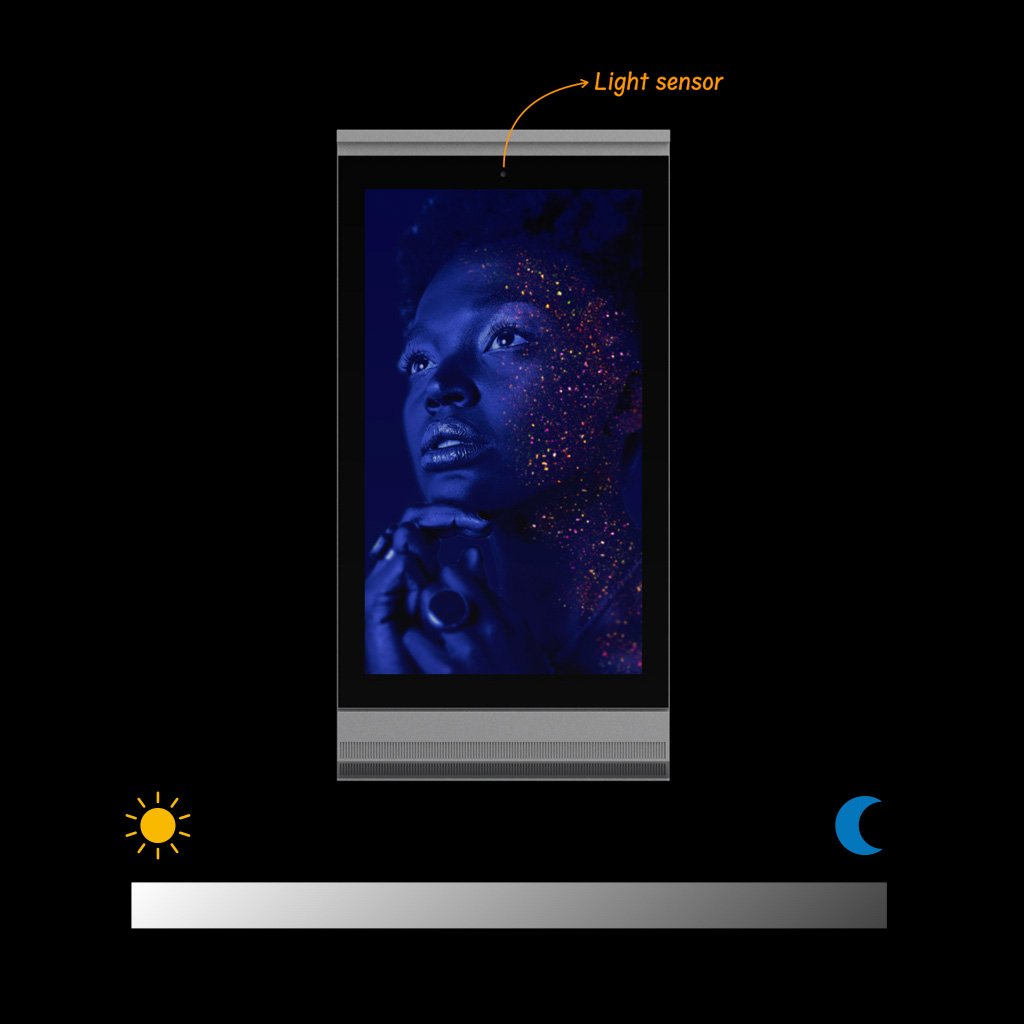

Auto Brightness Control
Includes a light sensor that automatically adjusts screen brightness based on ambient light, ensuring the best visual experience under any lighting conditions. Less light pollution and energy efficiency.
Highly secure

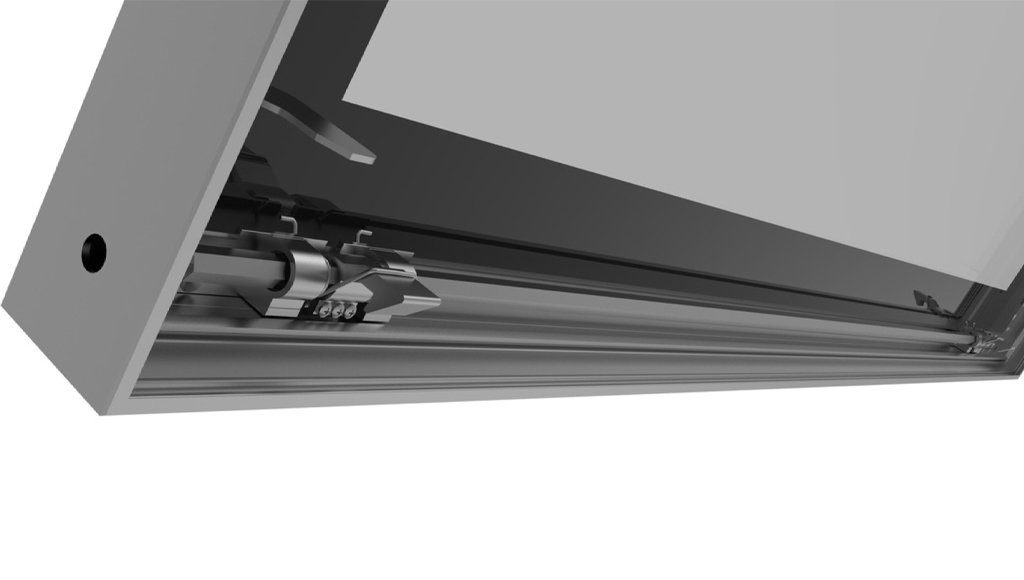

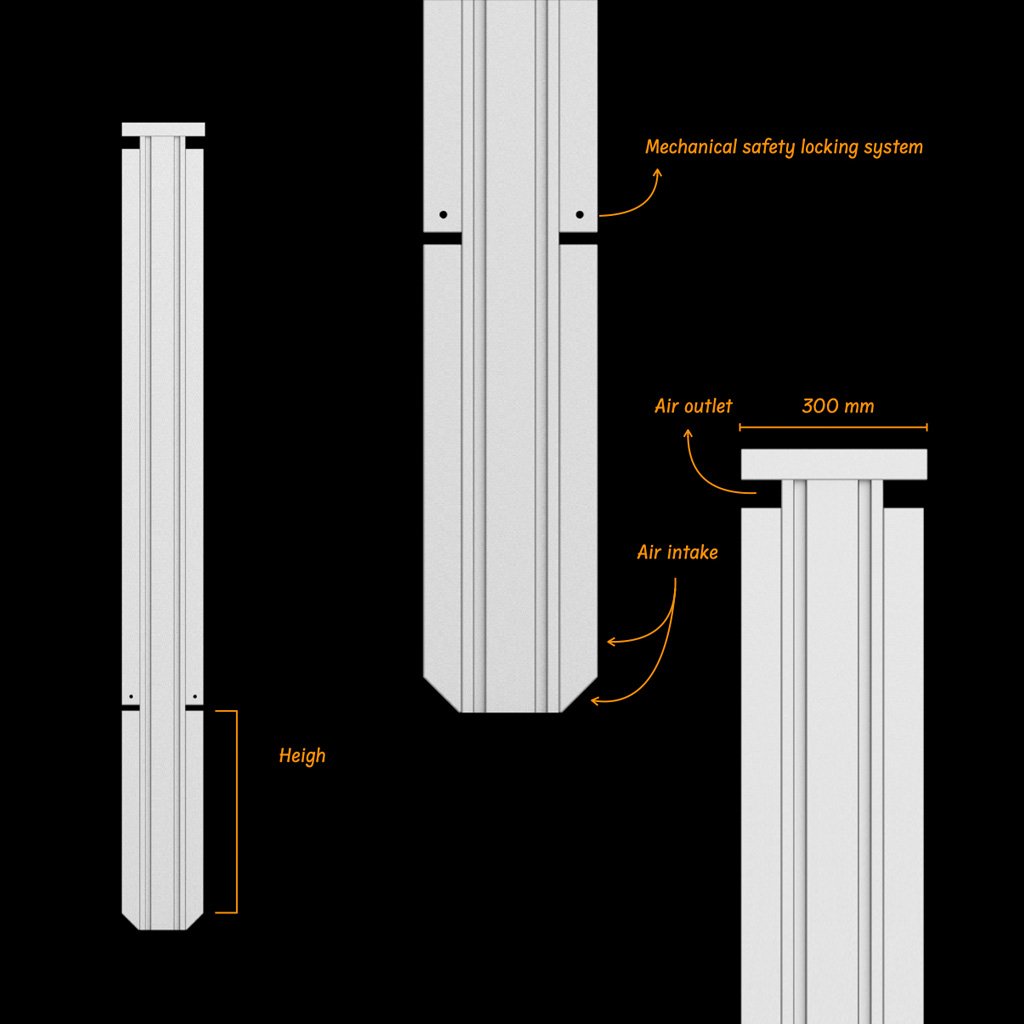

Mechanical locking system ,Reliable stainless steel security locking system with water proof treatment, and only open with a special key.
BLACK LED LAMP
Enhanced Visual Quality
With black LED technology, our displays deliver superior contrast, vibrant colors, and reduced glare, ensuring exceptional image clarity and visual impact, even in outdoor or high-brightness environments.
Robust Durability
Thanks to GOB (Glue on Board) technology, our LED displays are highly resistant to dust, moisture, and physical impact. This ensures long-lasting performance, making them suitable for demanding conditions.
Efficient and Reliable
Leveraging common cathode technology, our LED displays achieve lower power consumption, reduced heat generation, and improved stability, ensuring consistent performance while optimizing energy efficiency.
LED features
High contrast Ratios, high brightness:
MIP 1.9 LED (Micro LED in Package) technology ensures high brightness (3500nits), superior contrast, and excellent color consistency

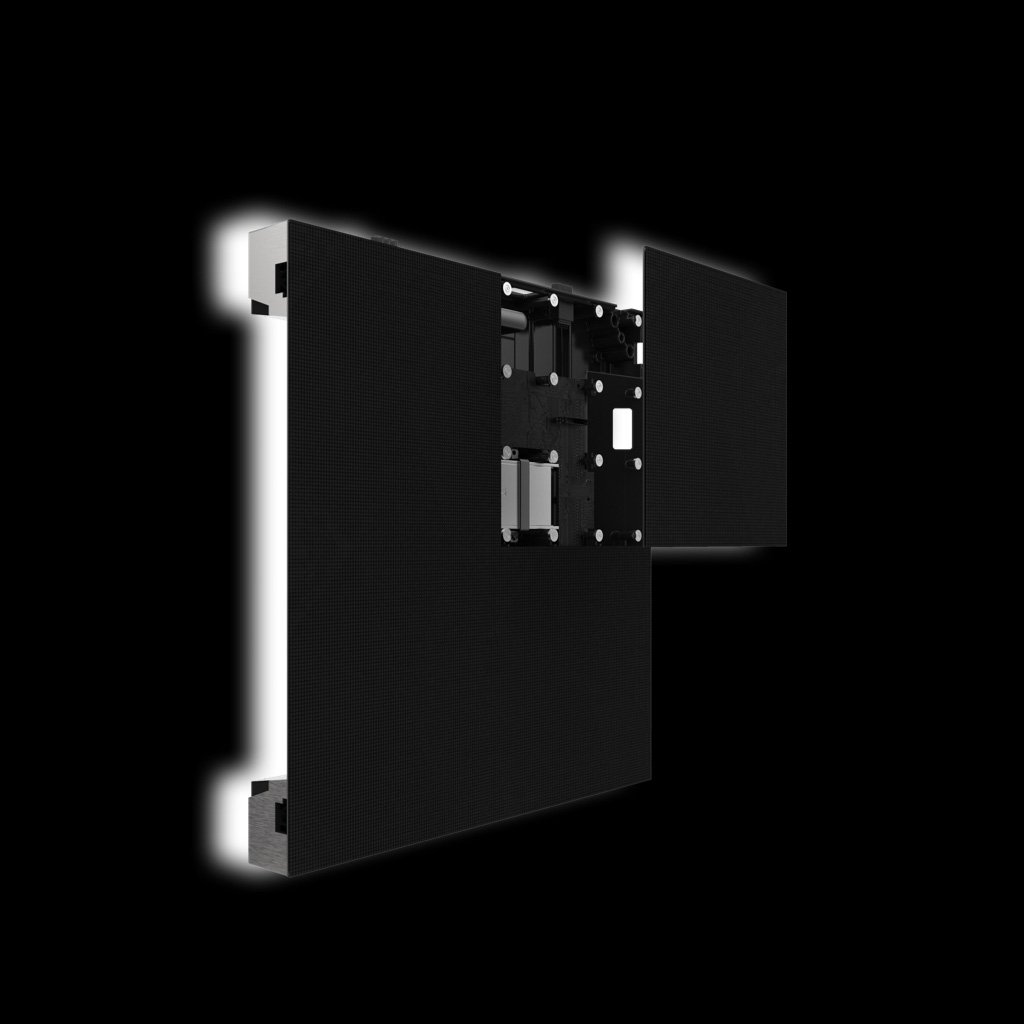

All-Aluminum Casing:
Constructed with an all-aluminum body without plastic parts, enhancing durability and stability under high temperatures.
Low maintenance cost:
Supporting single LED repair, significantly reducing maintenance costs.
4-layer PCB:
Features an optimized four-layer PCB design that enhances heat dissipation and overall stability.
Options for your DOOH
Digital mupi / Digital citylight
Hybrid
P2.9 Screen size : 1152*1728
P2.5 screen size: 1000*1750
P1.9 screen size: 1000*1750
Digital clock
P2.9
Advertising : 1152*1728
Clock : 1152* 288mm
Digital bus shelter
P1.56 | P1.87 | P2.5
Advertising : 1080*1920

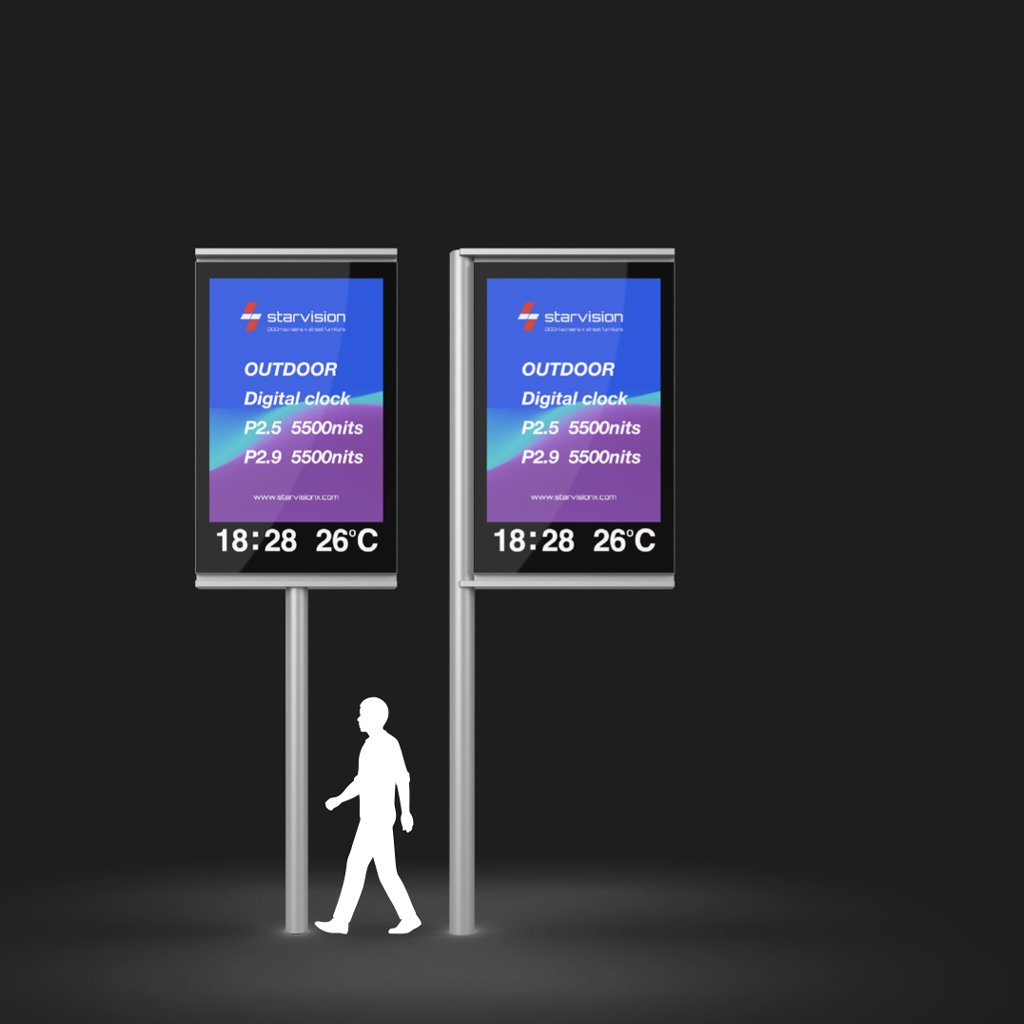

LED digital clock
P2.9 LED digital clock offers 5500nits LED screen, which can play dynamic advertising content, and shows the local time and temperature of the city. Water proof aluminum enclosure covered with anti glare glass. Equips with high efficiency smart cooling system.
Option : Single side LED / LED + Poster / Double sided LED
Advertising display size : 1152*1728
Clock display size: 1152mm x 384mm
Average Power consumption :420W
Application : city center

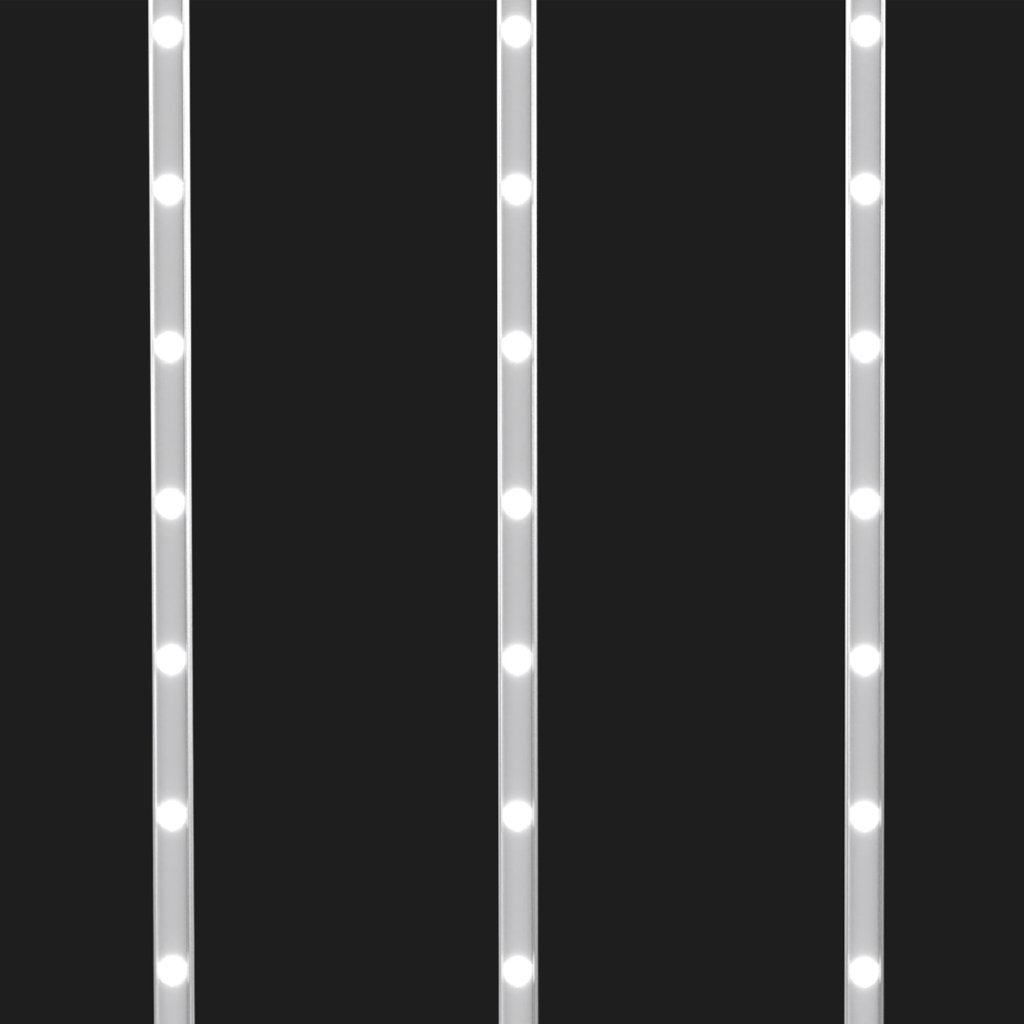

LED lighting
Uniformity of LED
Our designed double-sided LED waterproof light strips ensure that they can be used within a thickness of 200mm while still providing very uniform illumination.
The distance between LED beads, as well as the distance between the beads and the poster, has been rigorously calculated and tested to ensure the comfort and uniformity of illumination, guaranteeing that there are no dark areas or light leakage.
Timer control
Integrate with timer , to control the on-off time of the light. Remote control available as an option.
User friendly

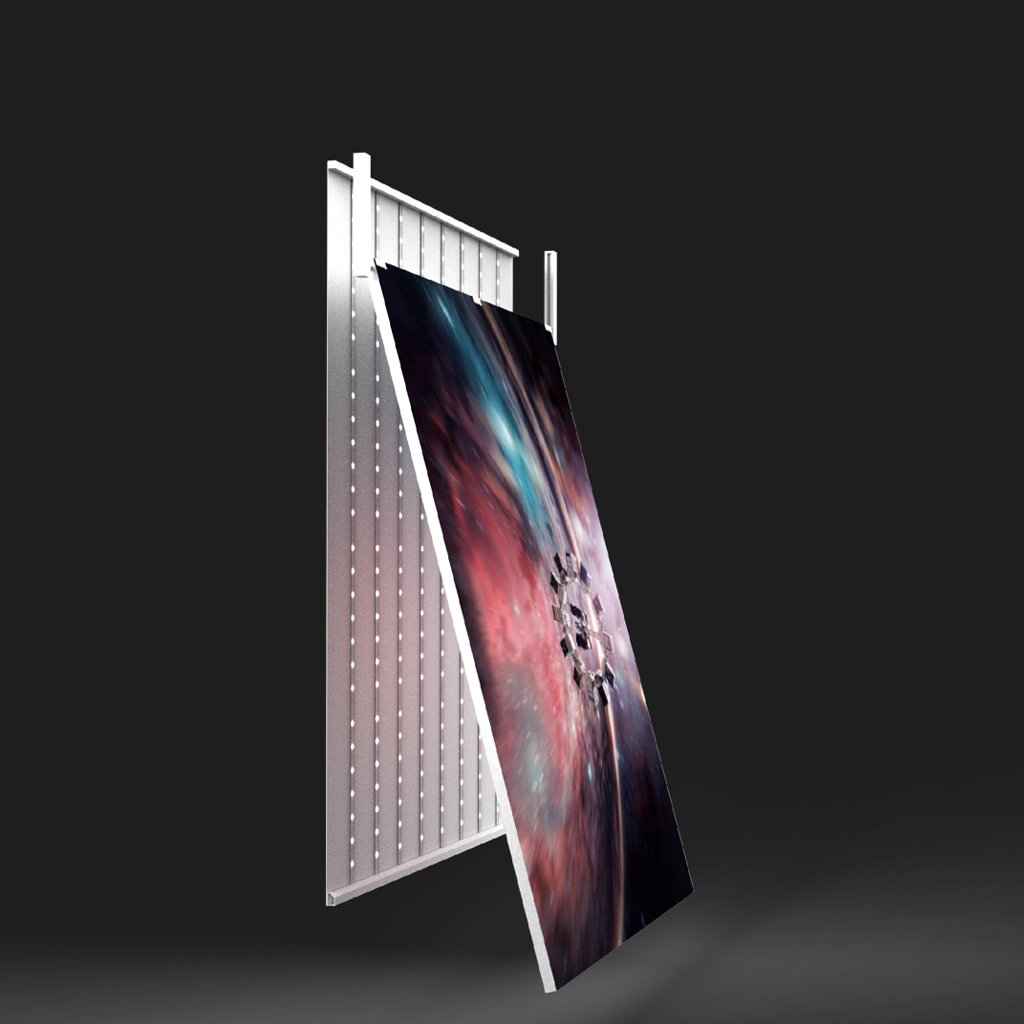

Poster holding& changing system
The poster holding frame allows to drop down for easy changing the poster, behind the poster is a transparent acrylic sheet to keep the poster flat and smooth.
On the top of the poster frame, there is poster clip to hold the poster
The static face we designed is separate from the digital screen surface, avoiding poster sway caused by the operation of the fan.
OUTDOOR DOOH
DIGITAL LED TOTEM
Eye level outdoor LED totem with IP 55 aluminum profile enclosure, laminated anti reflective glass protected the screen. digital totem integrated with smart weather management and auto brightness sensor.
Modern Design
Our design fully considers the unique climatic conditions of coastal city, ensuring the totem operates stably under natural conditions such as high temperature, rainfall, and humidity.
Robust Aluminum profile with outdoor powder coating
The casing material is selected for its corrosion resistance and rust-proof properties, coupled with a waterproof design, to guarantee the long-term stability of the device.
Galvanize steel structure reinforcement
The inner structure is made by galvanize steel, the galvanizing is after welded and polishing to insure the structure anti corrosion.
SUNLIGHT READABLE
Anti-Reflection | UV Resistance | Anti- Vandalism
The glass consists of two 4mm tempered layers laminated together, up to level IK 10, each side treated with anti-reflective processing for clear visibility even in strong sunlight. The black edges are silk-screen printed at high temperatures. Logo printing available on free of charge.
* Noted: Anti-reflective glass can effectively reduce the reflectivity of the glass, ensuring that advertising content remains clearly visible under sunlight. However, it cannot completely eliminate reflections.
HEAT & HUMIDITY
MANAGEMENT
A group of high-efficiency and reliable quality fans, controlled by a temperature and humidity management system, fans will automatically activate to maintain normal temperature and humidity levels inside the totem, effectively protecting the screen.
Auto Brightness Control
Includes a light sensor that automatically adjusts screen brightness based on ambient light, ensuring the best visual experience under any lighting conditions. Less light pollution and energy efficiency.
Highly secure
Mechanical locking system ,Reliable stainless steel security locking system with water proof treatment, and only open with a special key.
BLACK LED LAMP
Enhanced Visual Qualit
With black LED technology, our displays deliver superior contrast, vibrant colors, and reduced glare, ensuring exceptional image clarity and visual impact, even in outdoor or high-brightness environments.
Robust Durability
Thanks to GOB (Glue on Board) technology, our LED displays are highly resistant to dust, moisture, and physical impact. This ensures long-lasting performance, making them suitable for demanding conditions.
Efficient and Reliable
Leveraging common cathode technology, our LED displays achieve lower power consumption, reduced heat generation, and improved stability, ensuring consistent performance while optimizing energy efficiency.
Enhanced Visual Qualit
With black LED technology, our displays deliver superior contrast, vibrant colors, and reduced glare, ensuring exceptional image clarity and visual impact, even in outdoor or high-brightness environments.
Robust Durability
Thanks to GOB (Glue on Board) technology, our LED displays are highly resistant to dust, moisture, and physical impact. This ensures long-lasting performance, making them suitable for demanding conditions.
Efficient and Reliable
Leveraging common cathode technology, our LED displays achieve lower power consumption, reduced heat generation, and improved stability, ensuring consistent performance while optimizing energy efficiency.
LED features
High contrast Ratios, high brightness:
MIP 1.9 LED (Micro LED in Package) technology ensures high brightness (3500nits), superior contrast, and excellent color consistency
All-Aluminum Casing:
Constructed with an all-aluminum body without plastic parts, enhancing durability and stability under high temperatures.
Low maintenance cost:
Supporting single LED repair, significantly reducing maintenance costs.
4-layer PCB:
Features an optimized four-layer PCB design that enhances heat dissipation and overall stability.
Options for your DOOH
Digital mupi / Digital citylight
Hybrid
P2.9 Screen size : 1152*1728
P2.5 screen size: 1000*1750
P1.9 screen size: 1000*1750
Digital clock
P2.9
Advertising : 1152*1728
Clock : 1152* 288mm
Digital bus shelter
P1.56 | P1.87 | P2.5
Advertising : 1080*1920
LED digital clock
P2.9 LED digital clock offers 5500nits LED screen, which can play dynamic advertising content, and shows the local time and temperature of the city. Water proof aluminum enclosure covered with anti glare glass. Equips with high efficiency smart cooling system.
Option : Single side LED / LED + Poster / Double sided LED
Advertising display size : 1152*1728
Clock display size: 1152mm x 384mm
Average Power consumption :420W
Application : city center
LED lighting
User friendly
Poster holding& changing system
The poster holding frame allows to drop down for easy changing the poster, behind the poster is a transparent acrylic sheet to keep the poster flat and smooth.
On the top of the poster frame, there is poster clip to hold the poster
The static face we designed is separate from the digital screen surface, avoiding poster sway caused by the operation of the fan.
LED digital clock
P2.9 LED digital clock offers 5500nits LED screen, which can play dynamic advertising content, and shows the local time and temperature of the city. Water proof aluminum enclosure covered with anti glare glass. Equips with high efficiency smart cooling system
Option : Single side LED / LED + Poster / Double sided LED
Advertising display size : 1250mm x 1750mm
Clock display size: 1250mm x 250mm
Average Power consumption :420W
Application : city center
| Pixel pitch | 1.95mm | 2.5mm | 2.976mm |
| LEDs | SMD1415 | SMD1921 black lamp | SMD1921 |
| Size of module | 250mm×250mm | 250mm×250mm | 250mm×250mm |
| Resolution of module | 128×128 | 100×100 | 84×84 |
| Brightness | > 4,500nits | > 3500nits | > 5000nits |
| Density | 262,144dots/㎡ | 160,000dots/㎡ | 112,896dots/㎡ |
| Best viewing angle | 140° | 140° | 140° |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Best viewing distance | > 1.9M | > 2.5M | > 2.9M |
| Maximum power consumption | < 570W/㎡ | < 590W/㎡ | < 560W/㎡ |
| Average power consumption | < 171W/㎡ | < 177W/㎡ | < 168W/㎡ |
| Driving method | 1/32 | 1/25 | 1/28 |
| Control method | synchronization | synchronization | synchronization |
| Gray scale | 14 bits | 16 bits | 14 bits |
| Colors | 16,777,216 | 16,777,216 | 16,777,216 |
| Color temperature | 8,000k | 8,000k | 8,000k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220±10% | AC220±10% | AC220±10% |
| Working temperature -20℃~+50℃ | -30℃~+50℃ | -20℃~+50℃ | -30℃~+50℃ |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequence | ≥60Hz | ≥60Hz | ≥60Hz |
| Refresh frequence | ≥4,800Hz | ≥4,800Hz | ≥4,800Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
| Data transafer method | RJ45 | RJ45 | RJ45 |
| Effective Communication Distance(without relay) | Unshielded twisted pair net line transmission distance :100M, max transmission distance:150M ; Multi-mode optic fiber :500M; Single-mode optic fiber: 10KM | ||
LED Spec.
| LEDs | SMD1415 |
| Size of module | 250mm×250mm |
| Resolution of module | 128×128 |
| Brightness | > 4,500nits |
| Density | 262,144dots/㎡ |
| Best viewing angle | 140° |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | > 1.9M |
| Maximum power consumption | < 570W/㎡ |
| Average power consumption | < 171W/㎡ |
| Driving method | 1/32 |
| Control method | Syncronization |
| Gray scale | 14 bits |
| Colors | 16,777,216 |
| Color temperature | 8,000k |
| Driving device | Constant current |
| Working voltage | AC220±10% |
| Working temperature -20℃~+50℃ | -30℃~+50℃ |
| MTBF | >10,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | ≥4,800Hz |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Effective Communication Distance(without relay) | Unshielded twisted pair net line transmission distance :100M, max transmission distance:150M ; Multi-mode optic fiber :500M; Single-mode optic fiber: 10KM |
| LEDs | SMD1921 |
| Size of module | 250mm×250mm |
| Resolution of module | 100×100 |
| Brightness | > 5000nits |
| Density | 160,000dots/㎡ |
| Best viewing angle | 140° |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | > 2.5M |
| Maximum power consumption | < 560W/㎡ |
| Average power consumption | < 168W/㎡ |
| Driving method | 1/25 |
| Control method | Syncronization |
| Gray scale | 16 bits |
| Colors | 16,777,216 |
| Color temperature | 8,000k |
| Driving device | Constant current |
| Working voltage | AC220±10% |
| Working temperature -20℃~+50℃ | -30℃~+50℃ |
| MTBF | >10,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | ≥4,800Hz |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Effective Communication Distance(without relay) | Unshielded twisted pair net line transmission distance :100M, max transmission distance:150M ; Multi-mode optic fiber :500M; Single-mode optic fiber: 10KM |
| LEDs | SMD1415 |
| Size of module | 250mm×250mm |
| Resolution of module | 128×128 |
| Brightness | > 5000nits |
| Density | 112,896dots/㎡ |
| Best viewing angle | 140° |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | > 2.9M |
| Maximum power consumption | < 560W/㎡ |
| Average power consumption | < 168W/㎡ |
| Driving method | 1/28 |
| Control method | Syncronization |
| Gray scale | 14 bits |
| Colors | 16,777,216 |
| Color temperature | 8,000k |
| Driving device | Constant current |
| Working voltage | AC220±10% |
| Working temperature -20℃~+50℃ | -30℃~+50℃ |
| MTBF | >10,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | ≥4,800Hz |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Effective Communication Distance(without relay) | Unshielded twisted pair net line transmission distance :100M, max transmission distance:150M ; Multi-mode optic fiber :500M; Single-mode optic fiber: 10KM |
We offer 2 square meter LED totem and digital street clock for choices, customize design and configuration also available.
LED Totem
Street Pole LED Display
Outdoor LED totem
— SMD LED Screen, 5500nits brightness, for DOOH
Starvision launch the 2 m² LED mupi and digital street clock for outdoor advertising and municipal. which integrate high quality P3 LED screen with a static poster on the other side.
LED Display
When it comes to 2m² street digital out of home screens, star vision LED mupi display is a perfect choice, the freestanding LED display brightness up to 5500nits, thanks to the smart fans cooling system, so we can protect the screen with 6mm safety glass on front but without heat problem.
Robust and stylish
Display size(W*H): 1150mm*1710mm
The robust and stylish design enclosure is made by aluminum profile joined by welding, polishing and outdoor powder coating in any color as request. The enclosures are waterproof and also Anti corrosion. it can be used in any outdoor conditions for decades and still looks new.
Outstanding Screen
Star vision SMD LED screen equipped with SMD1921 LED bulbs, provide up to 5500 nits brightness, and with 3840HZ high refresh rate. the SMD mupi LED offers excellent contrast, optimal light distributions and great viewing angles.
We offer outstanding resolutions from P2.5 to P4 for 2 sqm display.
Anti-Vandalism
The screen is covered by 6mm clear tempered glass(IK10),with ceramic printing border. Customize backlit logo printing available, and its easy clean.
Smart cooling
To enlarge the stability and lifetime of the LED screen, we built smart fan cooling system inside the totem to keep the temperature in a suitable range, which can avoid the overheat inside the machine.
LED Display + Poster
LED illuminance for poster side up to 3000 lux, with 6500k comfortable color temperature. Both doors with gas spring support and hinges on the top, allows both front and back access maintenance of LED screen.
Easy poster system
With our easy poster system equipped with poster clips on white acrylic diffuser with aluminum frame and stainless steel sliding rail. With the easy poster system, client can change a poster quickly and easily.
Mechanical locking system
Our patented mechanical locking system which is reliable and user friendly, can be open only with special tools.
Smart control CMS
The smart control system based on android 11. Which allows client to control the content by PC and mobile. with the smart control CMS, clients can monitor the screens performance and condition remotely. Including temperature, power, displays. The Auto brightness control will automatically adjust the brightness according to the environment.
We offer 2 square meter LED totem and digital street clock for choices, customize design and configuration also available.
Screen Spec. sheet
| Pixel Pitch(mm) | 3.0 |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m²) | 110889 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 192*192 |
| Module resolution(pixels) | 64*64 |
| Brand of LEDs | Nationstar |
| Brand of power | Meanwell |
| Physical cabinet resolution(pixels) | 576*576 |
| Waterproof level | IP65 |
| Max. power consumption(w/pcs) | 350W |
| Average power consumption(w/pcs) | 175W |
| Operation platform | Windows |
| Control mode | Synchronized control |
| Other specifications | |
| Brightness(nits)/m² | 5000 |
| Refreshing frequency | 3840HZ |
| Best viewing distance (m) | 3.0 |
| Best view angle | 160°/130 |
| Drive method | 1/8scan |
| Operation temperature | -20°C+60°C |
| Operating voltage | 220/110V/AC 50Hz +-10% |
| Brightness adjustment | Software/Manual |
| Pixel Pitch(mm) | 3.91 |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m²) | 65536 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 250*250 |
| Module resolution(pixels) | 64*64 |
| Brand of LEDs | Nationstar |
| Brand of power | Meanwell |
| Physical cabinet resolution(pixels) | 128*256 |
| Waterproof level | IP65 |
| Max. power consumption(w/pcs) | 350W |
| Average power consumption(w/pcs) | 175W |
| Operation platform | Windows |
| Control mode | Synchronized control |
| Other specifications | |
| Brightness(nits)/m² | 5000 |
| Refreshing frequency | 1920-3840HZ |
| Best viewing distance (m) | 3.91 |
| Best view angle | 160°/130° |
| Drive method | 1/8scan |
| Operation temperature | -20°C+60°C |
| Operating voltage | 220/110V/AC 50Hz +-10% |
| Brightness adjustment | Software/Manual |
| Pixel Pitch(mm) | 3.0 |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m²) | 110889 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 192*192 |
| Module resolution(pixels) | 64*64 |
| Brand of LEDs | Nationstar |
| Brand of power | Meanwell |
| Physical cabinet resolution(pixels) | 576*576 |
| Waterproof level | IP65 |
| Max. power consumption(w/pcs) | 350W |
| Average power consumption(w/pcs) | 175W |
| Operation platform | Windows |
| Control mode | Synchronized control |
| Other specifications | |
| Brightness(nits)/m² | 5000 |
| Refreshing frequency | 3840HZ |
| Best viewing distance (m) | 3.0 |
| Best view angle | 160°/130 |
| Drive method | 1/8scan |
| Operation temperature | -20°C+60°C |
| Operating voltage | 220/110V/AC 50Hz +-10% |
| Brightness adjustment | Software/Manual |
| Pixel Pitch(mm) | 3.91 |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m²) | 65536 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 250*250 |
| Module resolution(pixels) | 64*64 |
| Brand of LEDs | Nationstar |
| Brand of power | Meanwell |
| Physical cabinet resolution(pixels) | 128*256 |
| Waterproof level | IP65 |
| Max. power consumption(w/pcs) | 350W |
| Average power consumption(w/pcs) | 175W |
| Operation platform | Windows |
| Control mode | Synchronized control |
| Other specifications | |
| Brightness(nits)/m² | 5000 |
| Refreshing frequency | 1920-3840HZ |
| Best viewing distance (m) | 3.91 |
| Best view angle | 160°/130° |
| Drive method | 1/8scan |
| Operation temperature | -20°C+60°C |
| Operating voltage | 220/110V/AC 50Hz +-10% |
| Brightness adjustment | Software/Manual |
Check out our installations
