Indoor digital totem
Indoor Digital Totem — For Airport, Malls and Stations

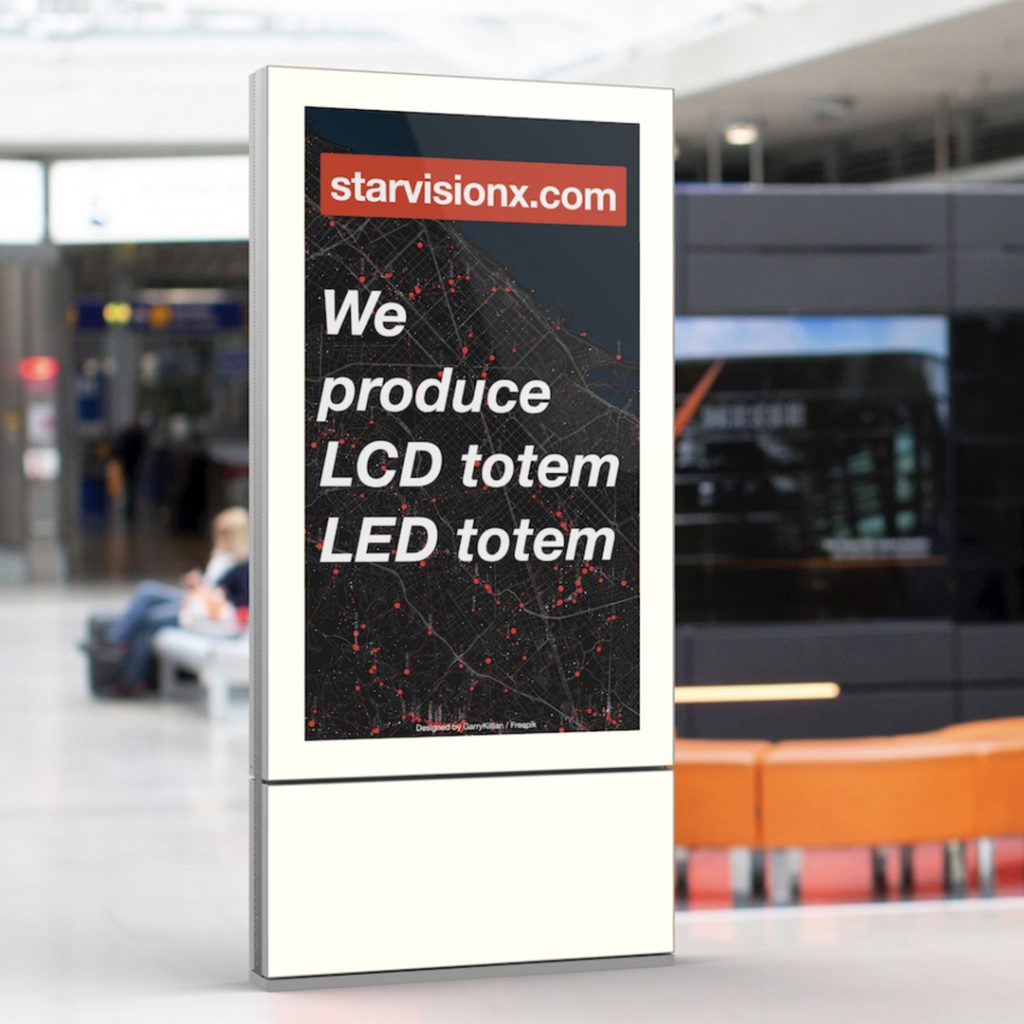

The Starvision indoor LCD totem display, is an ideal solution for airports, shopping malls, and transit stations etc. A stylish and robust enclosure integrated with a 4K original commercial grade panel, supporting 24-7 use, standard or high brightness versions at 500 nits or 700 nits, plus a brightness sensor for automatic brightness adjustment. The screen is covered by IK-10 rated tempered glass, with screen printed border which can be fully customised with a company logo, and also backlit. The available LCD screen sizes are 55 inch all the way up to 86 inch.
Outstanding display Panel
4K Ultra HD industrial panel, Design for 24 x 7
- 4K Ultra HD screen wide color and wide-angle display, deliver true-to-life images, stands out in any location, Up to 700nits back lit LED Panel’s lifetime up to 50,000 hours, Automatically adjust the screen brightness according to the environment.
- Available size: 43″ -86 ” digital screen, 4K resolution since from 65″.
Details makes the difference
Aluminum profile enclosure finished with powder coating, front glass to the edge. Elegant design but robust enclosure, high quality from inside to the outside, covered with IK10 clear tempered glass, with ceramic printing black border, backlit logo available.
Operation system
Android OS, 2 + 8G free on charge CMS
Windows 10 pro, intel i5 CPU 8G+128GSSD
Choose Model for your project
Indoor digital totem — For Airport, Malls and Stations
The Starvision indoor LCD totem display, is an ideal solution for airports, shopping malls, and transit stations etc. A stylish and robust enclosure integrated with a 4K original commercial grade panel, supporting 24-7 use, standard or high brightness versions at 500 nits or 700 nits, plus a brightness sensor for automatic brightness adjustment. The screen is covered by IK-10 rated tempered glass, with screen printed border which can be fully customised with a company logo, and also backlit. The available LCD screen sizes are 55 inch all the way up to 86 inch.
4K Ultra HD industrial panel, Design for 24 x 7
• 4K Ultra HD screen wide color and wide angle display, deliver true-to-life images，stands out in any location, Up to 700nits back lit LED Panel’s lifetime up to 50,000 hours, Automatically adjust the screen brightness according to the environment.
• Available size: 43” -86 “ digital screen. *4K resolution since from 65”.
Details makes the difference
Aluminum profile enclosure finished with powder coating, front glass to the edge. Elegant design but robust enclosure, high quality from inside to the outside, covered with IK10 clear tempered glass, with ceramic printing black border, backlit logo available.
Available OS
• Android OS
• Windows PC
• Windows PC
Optional function
• touch screen.
• Ai camera,
•HD camera.
• Ai camera,
•HD camera.
If you need additional function, please let us know.
Product Specs
| Panel | ||
| LCD screen size (inch) | 55 | |
| Display area H*V(㎜) | 1210 x 680 | |
| Resolution | 3840×2160 | |
| Luminance (cd/m2) | 500 nits | |
| Grey to Grey Response Time (ms) | 6 | |
| Viewing Angle (H / V） | 178° / 178° | |
| Options | Single / Dual side / One side LCD, the other side poster | |
| Media & Connectivity | ||
| System | Android 7.1 / Windows 10 | |
| CPU | RK 3128 / I5 | |
| DDR | 2G /8G | |
| NAND | 8G / 128G | |
| WIFI | Yes | |
| LAN | Yes | |
| USB | Yes | |
| 4G / 3G | Yes | |
| Speaker | 8 Ω 5 W x 2 | |
| Power | ||
| Input Voltage | AC 220 V ± 10%, 50 / 60 HZ | |
| Power Consumption(W) | 207 | |
| Enclosure | ||
| Enclosure Material | steel | |
| IP Rating | IP40 | |
| Weight (kg) | TBD | |
| Environment | ||
| Operating Environment | Indoor | |
| Operating Temp. | 0℃ ～ +40℃ | |
| Operating Humidity | 5% ～ 98% | |
| Operating Altitude | ≤ 2000 m | |
| PANEL | |
| LCD screen size (inch) | 65 |
| Display area H*V(㎜) | 1428 x 803 |
| Resolution | 3840×2160 |
| Luminance (cd/m2) | 500 nits |
| Grey to Grey Response Time (ms) | 6 |
| Viewing Angle (H / V） | 178° / 178° |
| Options | Single / Dual side / One side LCD, the other side poster |
| Media & Connectivity | |
| System | Android 7.1 / Windows 10 |
| CPU | RK 3128 / I5 |
| DDR | 2G /8G |
| NAND | 8G / 128G |
| WIFI | Yes |
| LAN | Yes |
| USB | Yes |
| 4G / 3G | Yes |
| Speaker | 8 Ω 5 W x 2 |
| Power | |
| Input Voltage | AC 220 V / 110 V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | 252 |
| Enclosure | |
| Enclosure Material | Steel |
| IP Rating | IP40 |
| Weight (kg) | TBD |
| Environment | |
| Operating Environment | Indoor |
| Operating Temp. | 0℃ ～ +40℃ |
| Operating Humidity | 5% ～ 98% |
| Operating Altitude | ≤ 2000 m |
| PANEL | |
| LCD screen size (inch) | 75 |
| Display area H*V(㎜) | 1655 x 931 |
| Resolution | 3840×2160 |
| Luminance (cd/m2) | 500 nits |
| Grey to Grey Response Time (ms) | 6 |
| Viewing Angle (H / V） | 178° / 178° |
| Options | Single / Dual side / One side LCD, the other side poster |
| Media & Connectivity | |
| System | Android 7.1 / Windows 10 |
| CPU | RK 3128 / I5 |
| DDR | 2G /8G |
| NAND | 8G / 128G |
| WIFI | Yes |
| LAN | Yes |
| USB | Yes |
| 4G / 3G | Yes |
| Speaker | 8 Ω 5 W x 2 |
| Power | |
| Input Voltage | AC 220 V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | |
| Enclosure | |
| Enclosure Material | Steel |
| IP Rating | IP40 |
| Weight (kg) | TBD |
| Environment | |
| Operating Environment | Indoor |
| Operating Temp. | 0℃ ～ +40℃ |
| Operating Humidity | 5% ～ 98% |
| Operating Altitude | ≤ 2000 m |
| PANEL | ||
| LCD screen size (inch) | 86 | |
| Display area H*V(㎜) | 1895 x 1065 | |
| Resolution | 3840×2160 | |
| Luminance (cd/m2) | 500 nits | |
| Grey to Grey Response Time (ms) | 6 | |
| Viewing Angle (H / V） | 178° / 178° | |
| Options | Single / Dual side / One side LCD, the other side poster | |
| Media & Connectivity | ||
| System | Android 7.1 / Windows 10 | |
| CPU | RK 3128 / I5 | |
| DDR | 2G /8G | |
| NAND | 8G / 128G | |
| WIFI | Yes | |
| LAN | Yes | |
| USB | Yes | |
| 4G / 3G | Yes | |
| Speaker | 8 Ω 5 W x 2 | |
| Power | ||
| Input Voltage | AC 220 V / 110 V ± 10%, 50 / 60 HZ | |
| Max Power Consumption (w) | ||
| Enclosure | ||
| Enclosure Material | Steel | |
| IP Rating | IP40 | |
| Weight (kg) | TBD | |
| Environment | ||
| Operating Environment | Indoor | |
| Operating Temp. | 0℃ ～ +40℃ | |
| Operating Humidity | 5% ～ 98% | |
| Operating Altitude | ≤ 2000 m | |
| Panel | ||
| LCD screen size (inch) | 55 | |
| Display area H*V(㎜) | 1210 x 680 | |
| Resolution | 3840×2160 | |
| Luminance (cd/m2) | 500 nits | |
| Grey to Grey Response Time (ms) | 6 | |
| Viewing Angle (H / V） | 178° / 178° | |
| Options | Single / Dual side / One side LCD, the other side poster | |
| Media & Connectivity | ||
| System | Android 7.1 / Windows 10 | |
| CPU | RK 3128 / I5 | |
| DDR | 2G /8G | |
| NAND | 8G / 128G | |
| WIFI | Yes | |
| LAN | Yes | |
| USB | Yes | |
| 4G / 3G | Yes | |
| Speaker | 8 Ω 5 W x 2 | |
| Power | ||
| Input Voltage | AC 220 V ± 10%, 50 / 60 HZ | |
| Power Consumption(W) | 207 | |
| Enclosure | ||
| Enclosure Material | steel | |
| IP Rating | IP40 | |
| Weight (kg) | TBD | |
| Environment | ||
| Operating Environment | Indoor | |
| Operating Temp. | 0℃ ～ +40℃ | |
| Operating Humidity | 5% ～ 98% | |
| Operating Altitude | ≤ 2000 m | |
| PANEL | |
| LCD screen size (inch) | 65 |
| Display area H*V(㎜) | 1428 x 803 |
| Resolution | 3840×2160 |
| Luminance (cd/m2) | 500 nits |
| Grey to Grey Response Time (ms) | 6 |
| Viewing Angle (H / V） | 178° / 178° |
| Options | Single / Dual side / One side LCD, the other side poster |
| Media & Connectivity | |
| System | Android 7.1 / Windows 10 |
| CPU | RK 3128 / I5 |
| DDR | 2G /8G |
| NAND | 8G / 128G |
| WIFI | Yes |
| LAN | Yes |
| USB | Yes |
| 4G / 3G | Yes |
| Speaker | 8 Ω 5 W x 2 |
| Power | |
| Input Voltage | AC 220 V / 110 V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | 252 |
| Enclosure | |
| Enclosure Material | Steel |
| IP Rating | IP40 |
| Weight (kg) | TBD |
| Environment | |
| Operating Environment | Indoor |
| Operating Temp. | 0℃ ～ +40℃ |
| Operating Humidity | 5% ～ 98% |
| Operating Altitude | ≤ 2000 m |
| PANEL | |
| LCD screen size (inch) | 75 |
| Display area H*V(㎜) | 1655 x 931 |
| Resolution | 3840×2160 |
| Luminance (cd/m2) | 500 nits |
| Grey to Grey Response Time (ms) | 6 |
| Viewing Angle (H / V） | 178° / 178° |
| Options | Single / Dual side / One side LCD, the other side poster |
| Media & Connectivity | |
| System | Android 7.1 / Windows 10 |
| CPU | RK 3128 / I5 |
| DDR | 2G /8G |
| NAND | 8G / 128G |
| WIFI | Yes |
| LAN | Yes |
| USB | Yes |
| 4G / 3G | Yes |
| Speaker | 8 Ω 5 W x 2 |
| Power | |
| Input Voltage | AC 220 V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | |
| Enclosure | |
| Enclosure Material | Steel |
| IP Rating | IP40 |
| Weight (kg) | TBD |
| Environment | |
| Operating Environment | Indoor |
| Operating Temp. | 0℃ ～ +40℃ |
| Operating Humidity | 5% ～ 98% |
| Operating Altitude | ≤ 2000 m |
| PANEL | ||
| LCD screen size (inch) | 86 | |
| Display area H*V(㎜) | 1895 x 1065 | |
| Resolution | 3840×2160 | |
| Luminance (cd/m2) | 500 nits | |
| Grey to Grey Response Time (ms) | 6 | |
| Viewing Angle (H / V） | 178° / 178° | |
| Options | Single / Dual side / One side LCD, the other side poster | |
| Media & Connectivity | ||
| System | Android 7.1 / Windows 10 | |
| CPU | RK 3128 / I5 | |
| DDR | 2G /8G | |
| NAND | 8G / 128G | |
| WIFI | Yes | |
| LAN | Yes | |
| USB | Yes | |
| 4G / 3G | Yes | |
| Speaker | 8 Ω 5 W x 2 | |
| Power | ||
| Input Voltage | AC 220 V / 110 V ± 10%, 50 / 60 HZ | |
| Max Power Consumption (w) | ||
| Enclosure | ||
| Enclosure Material | Steel | |
| IP Rating | IP40 | |
| Weight (kg) | TBD | |
| Environment | ||
| Operating Environment | Indoor | |
| Operating Temp. | 0℃ ～ +40℃ | |
| Operating Humidity | 5% ～ 98% | |
| Operating Altitude | ≤ 2000 m | |
Do you have a special project?
Please kindly contact with us, drop us an idea, we will make it real.
